Alternating Current

Alternating current
1. Alternating current/AC/alternating current or alternating voltage.

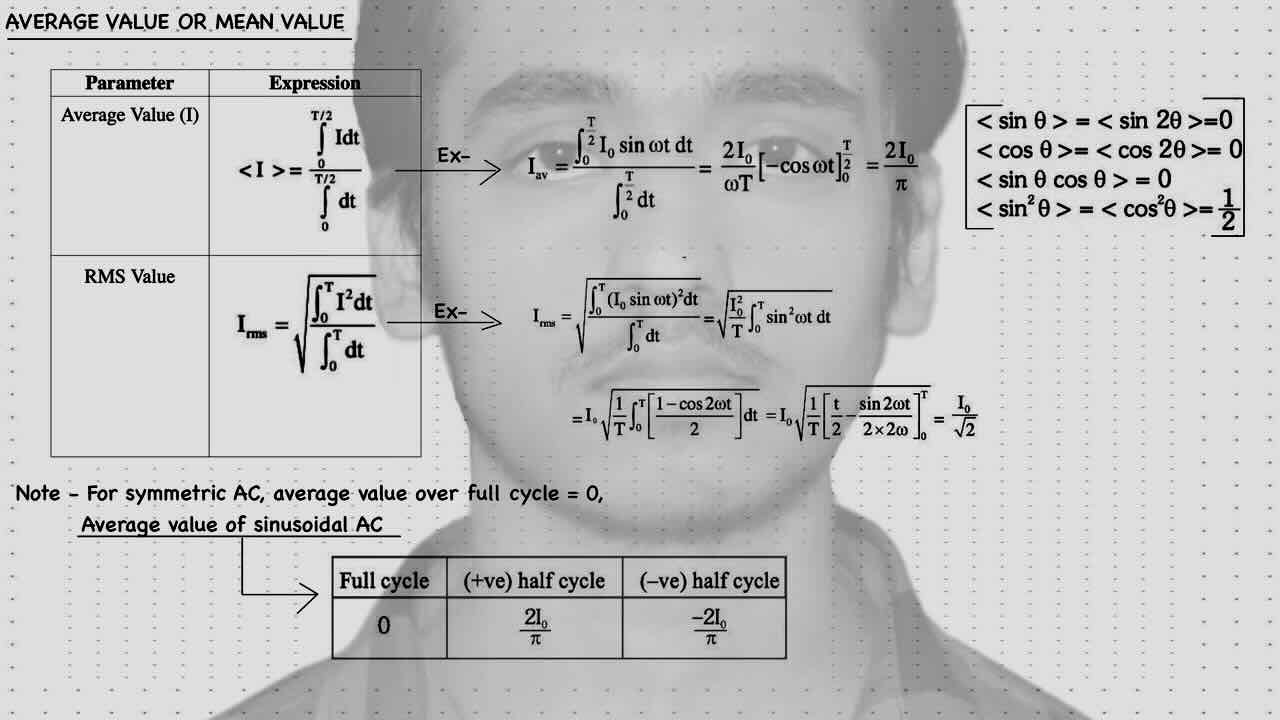

2. Alternating current/AC/Average value or mean value /RMS value/Average value of sinusoidal AC.
3. Alternating current/AC/some important wave forms and their RMS and Average value/Sinusoidal wave form/Half wave rectifier/Full-wave rectifier/Table for current, Average, Peak,RMS, Angular frequency.

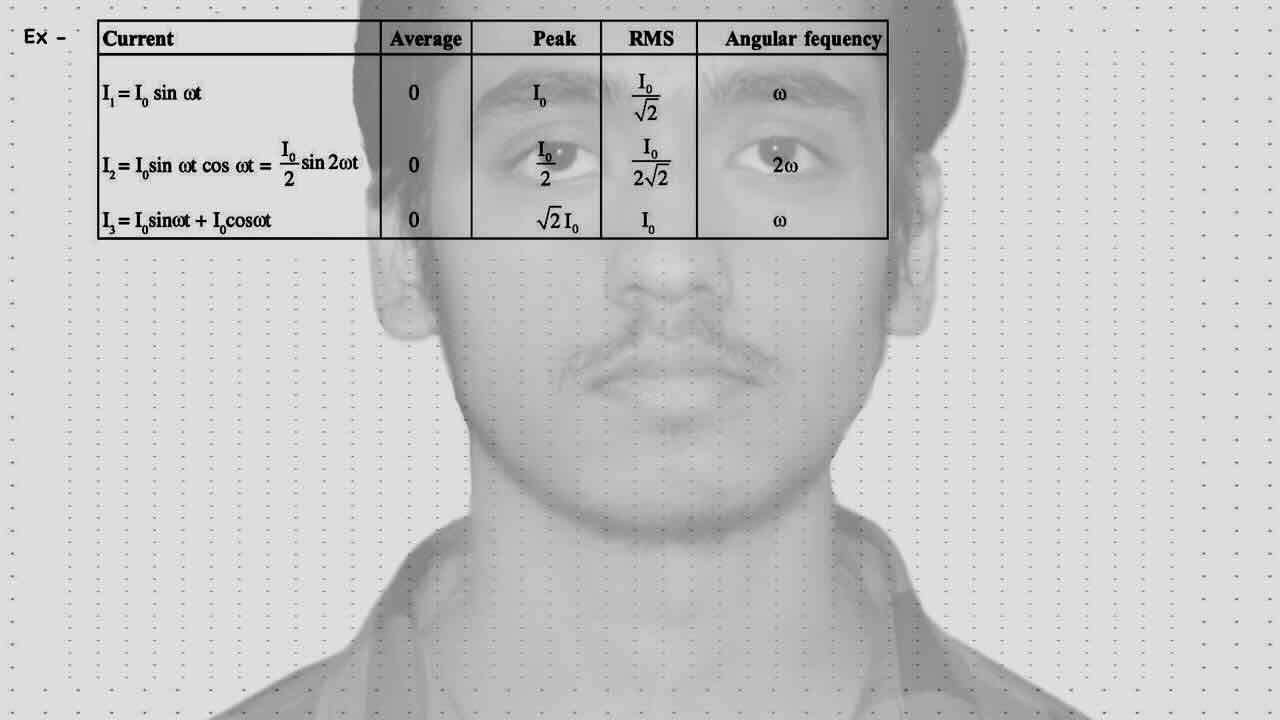

4. Alternating current/AC/Table for current, Average, Peak,RMS, Angular frequency
5. Alternating current/AC/Lagging and leading concept/Phasor and phasor diagram.
6. Alternating current/AC/Individual components/Resistance/Inductor/Capacitor/Table for Resistance, Inductor and Capacitor/Circuit/Supply voltage/Current/Peak current/Impedence/Phase difference/Phasor diagram/Variation of Z with f/G,Sl,Sc(mho)/Behaviour of devices in D.C and A.C/Ohm's law.
7. Alternating current/AC/Combination of components R-L or R-C or L-C/Circuit/Phasor diagram/Phase difference/in between/Impedence/Variation of Z/with f/at very low f/at very high f.
8. Alternating current/AC/Series LCR and Parallel LCR combination/Series L-C-R Circuit/Parallel L-C-R Circuit.
9. Alternating current/AC/Power in AC Circuit (LCR)/Power in AC Circuit(LCR)/Table for expression and description/Instantaneous Power/Average power/Power factor/Peak power/RMS power/Power factor types.
10. Alternating current/AC/Series resonance/At resonance/Resonance frequency/Variation of z with f/Variation of I with f /I vs f/Half power frequencies/Quality factor/Magnification/Sharpness.
11. Alternating current/AC/Transformer/Types of transformer/Losses in transformer.
